GIGABYTE B760 DS3H AX (WiFi 6E), Intel 13th 12th Series, LGA 1700/DDR4/PCIe 4.0/2xM.2 - ATX Gaming MotherBoard - Image 1

GIGABYTE B760 DS3H AX (WiFi 6E), Intel 13th 12th Series, LGA 1700/DDR4/PCIe 4.0/2xM.2 - ATX Gaming MotherBoard - Image 2

GIGABYTE B760 DS3H AX (WiFi 6E), Intel 13th 12th Series, LGA 1700/DDR4/PCIe 4.0/2xM.2 – ATX Gaming MotherBoard

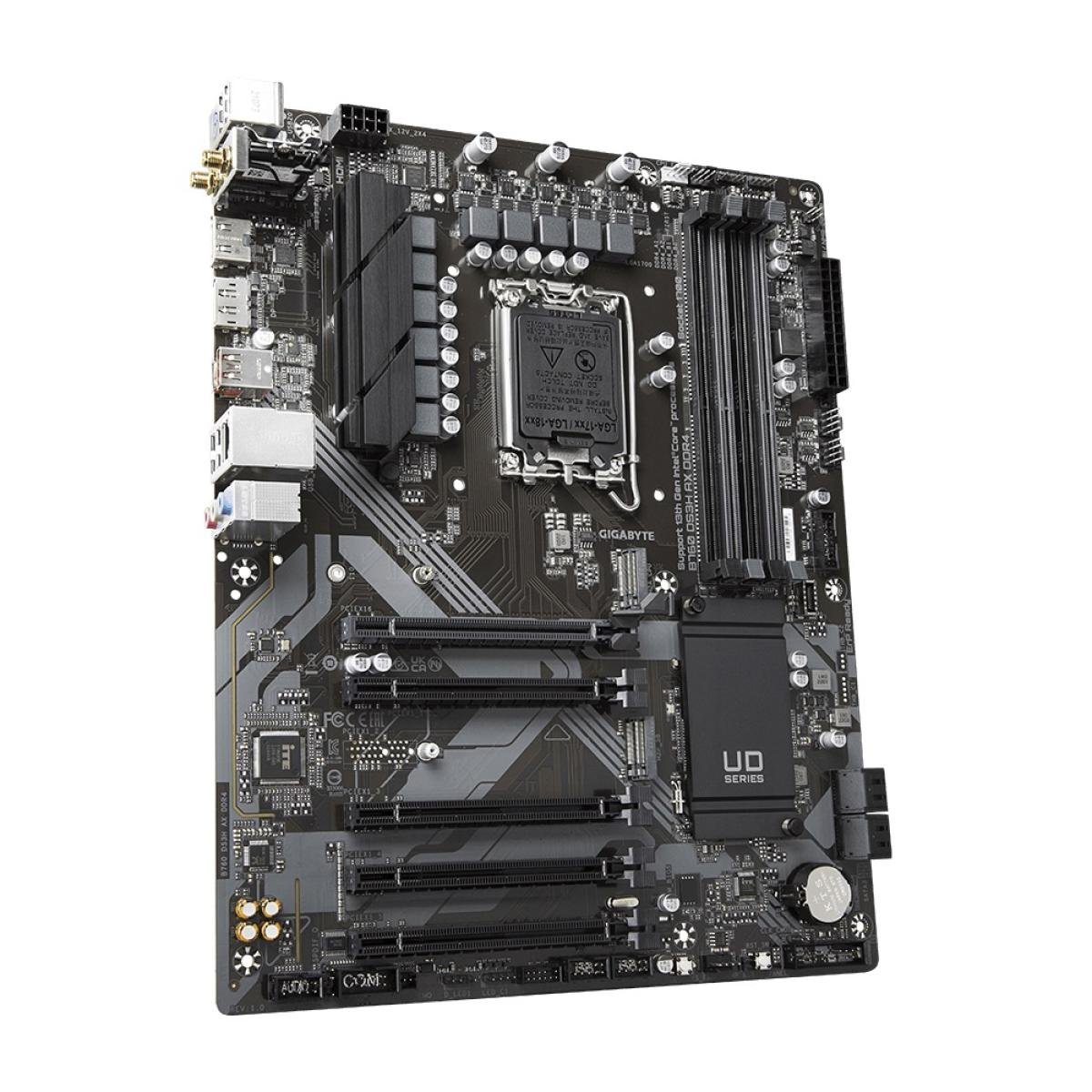

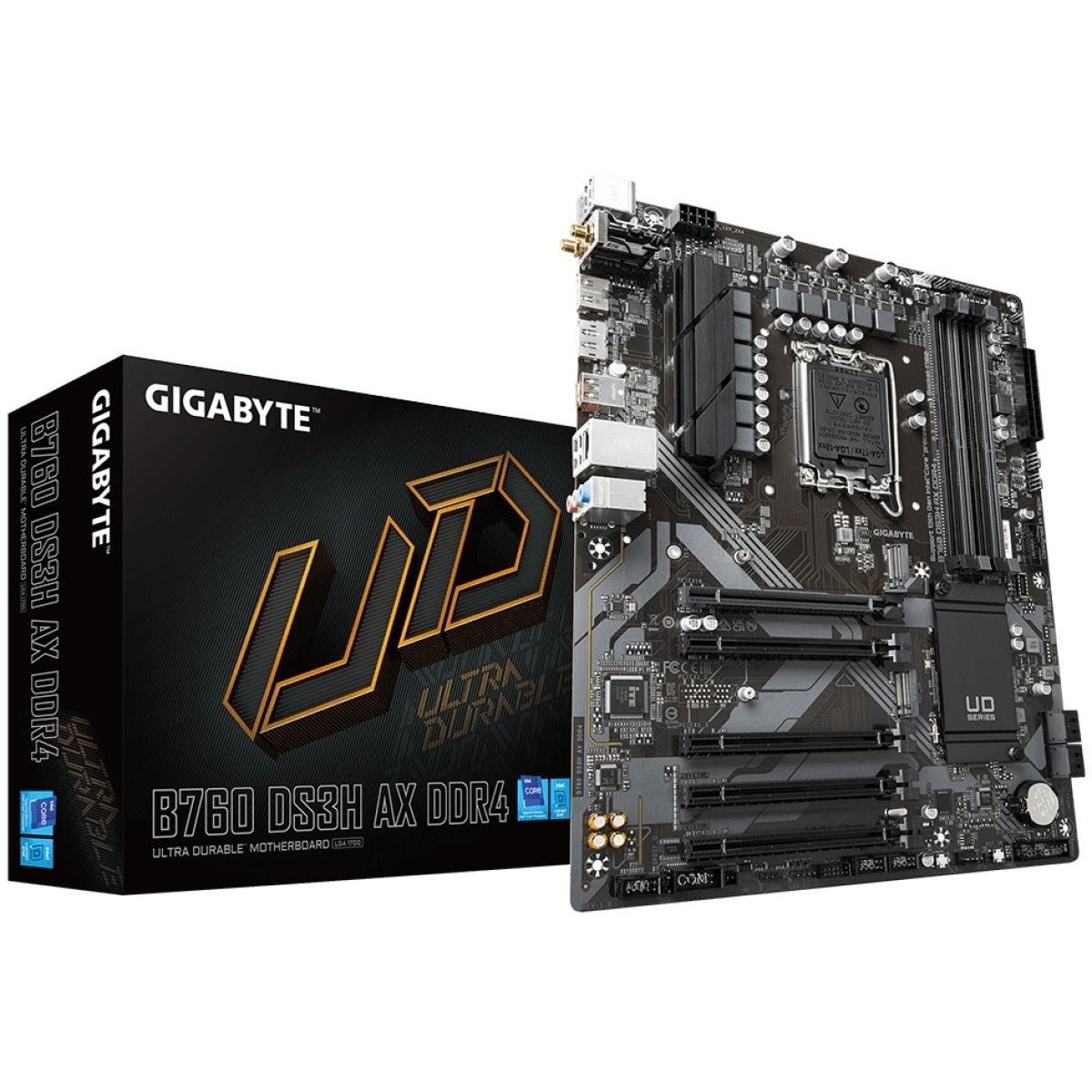

Name: GIGABYTE B760 DS3H AX (WiFi 6E), Intel 13th 12th Series, LGA 1700/DDR4/PCIe 4.0/2xM.2 - ATX Gaming MotherBoard
SKU: 11507
Availability: InStock

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Pr

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

د.ا129.00

Add to compare

Add to wishlist

17 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Motherboard Specifications
Supported Processors	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™ Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Socket	LGA1700
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
Memory Bus Speed	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Ports	1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x USB Type-C® port with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x RJ-45 port3 x audio jacks
Form Factor	ATX
M.2 Slots	Yes
Expansion Slots	CPU:1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance if only one PCI Express graphics card is to be installed be sure to install it in the PCIEX16 slot.Chipset:4 x PCI Express x16 slots supporting PCIe 3.0 and running at x1(PCIEX1_1 PCIEX1_3~PCIEX1_5)
